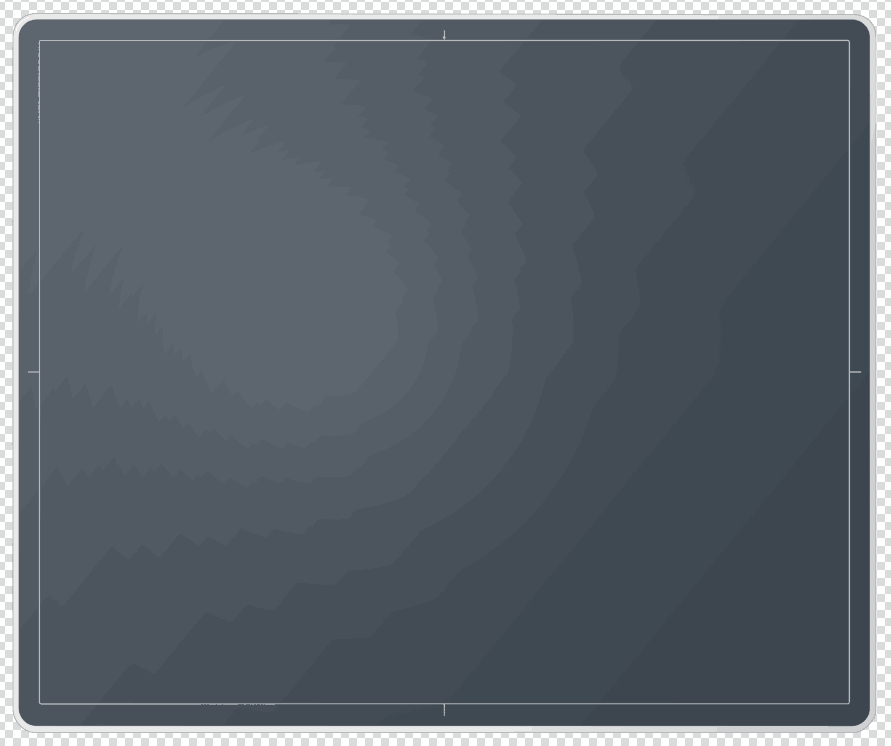

3543A是一款高性能、片盒大小的無線平板探測器�？梢岳m(xù)航至少10小時，獨特的無線傳輸技術，可以在3秒完成一副全分辨率的圖像傳輸，即使在最糟糕的情況下也不會超過5秒。與此同時，探測器具有高DQE，高分辨率等**品質。探測器具備高度靈敏和支持自動曝光檢測功能，可以方便的與所有高壓發生器連接并同步。
3543A is a high performance, cassette-sized flat panel detector.Batterystands by for at least 10 hours. Unique wireless communication protocol ensures fast and reliable transmission of a full resolution image within as short as 2 seconds, and no more than 5 seconds even in the worst environment. The detector acquires outstanding images with high DQE and high resolution. Equipped with highly sensitive AED function, the detector can be easily connected to and synchronized with any kind of generators.
描述
GOS
CsI
探測器類別Detector Technology
非晶硅
非晶硅
閃爍體Scintillator
GOS
圖像尺寸Image Size
35×43 cm
35×43 cm
像素矩陣Pixels Matrix
2560×3072
2560×3072
像素間距Pixel Pitch
140 um
140 um
A/D轉換A/D Conversion
16bit
16bit
最小探測劑量Minimum Detectable Dose
20 nGy
最大線性劑量Maximum Linear Dose (uGy ,RQA5)
150
殘影 Ghost (%, 300uGy, 60s)
<0.25
<0.25
空間分辨率 Spatial Resolution
3.6 LP/mm
3.6 LP/mm
出圖時間Image Acquisition Time (有線/無線)(Wired/Wireless)
1/3 S
1/3 S
X-射線工作范圍 X-ray Voltage Range
40-150 KV
40-150 KV
無線電池待機時間Battery standby time
10H
10H
數據接口Data Interface
GigE/802.11n,ac
GigE/802.11n,ac
功率Power Dissipation
20 W
20 W
適配器輸入Adapter Input
AC 100-240V,50-60Hz
AC 100-240V,50-60Hz
適配器輸出Adapter Output
DC 24V,60W
DC 24V,60W
探測器尺寸Dimensions
38×46×1.5 cm
38×46×1.5 cm
探測器重量Detector Weight
3.3 kg
3.3kg
探測器外殼材料Detector Housing Material
碳板,鎂合金 Carbon,Alloy
碳板,鎂合金Carbon,Alloy
防水等級Water tightness
IPX3
IPX3
工作環境Operating Environment
5-35oC,10-75% RH
5-35oC,10-75% RH
